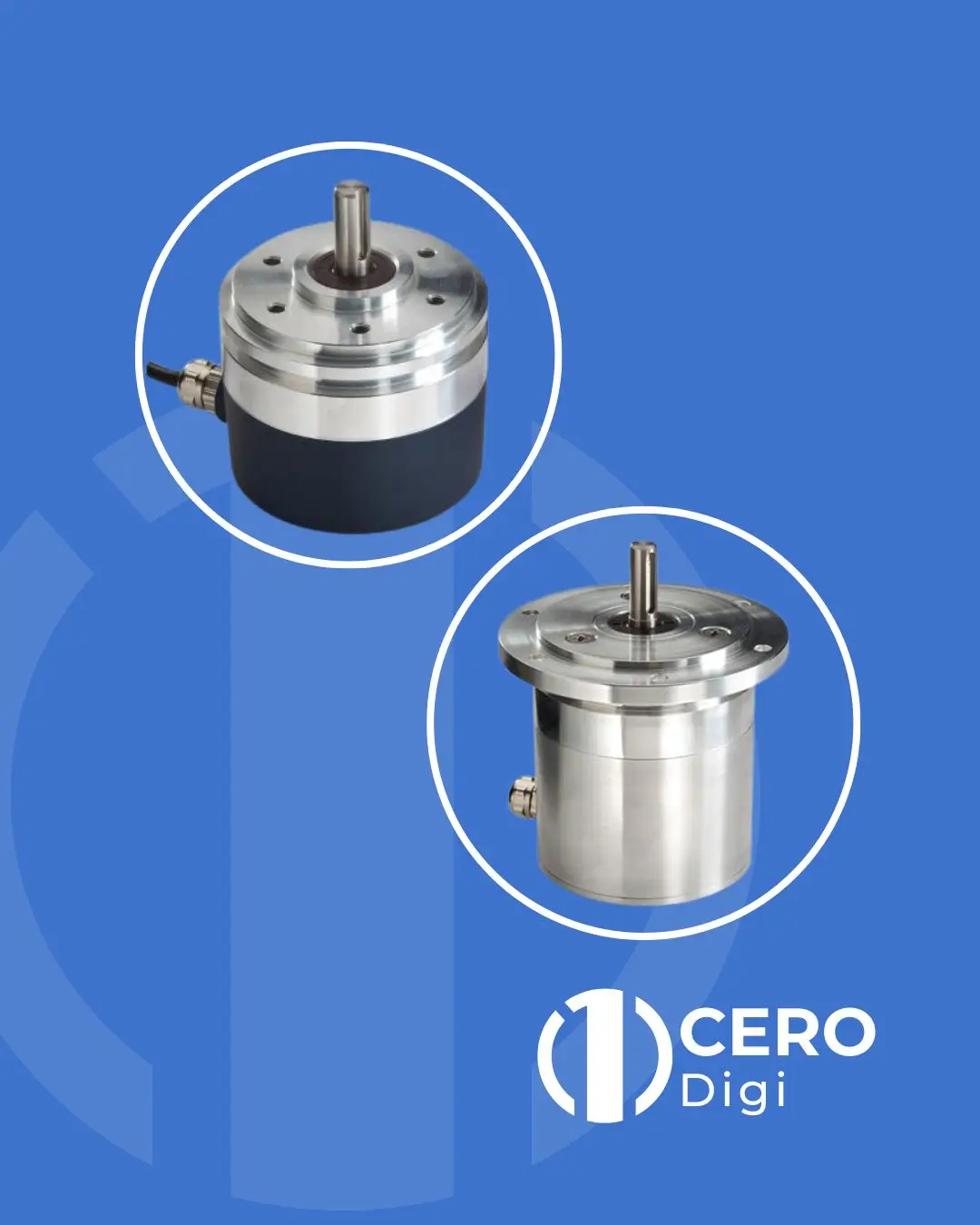

Features
• Especially designed for heavy-duty: steel and paper mills, lumber, cranes, etc.
• Excellent resistance to shocks/vibrations and to extreme axial/radial loads
• Connection with the terminal box with LED option, cable or connectors output
• Digital incremental output, optional analog output (tachoencoders, optotacho)
• Mechanical over-speed switch: optional
• Max control option: detection of shocks, vibrations, temperatures…
• Solid shaft of 12 mm or 11 mm with RE0 115 mm flange (Euroflange B10) for tachogenerator type mounting
Specifications
| Material (connector/cable version) — Stainless steel option | Cover: Zinc alloy
Body: Aluminium |
| Material (terminal box version) — Stainless steel option | Cover: Aluminium
Body: Aluminium |
| Shaft | Stainless steel |
| Bearings | 6001 series |
| Maximum Loads | Axial: 100 N
Radial: 200 N |
| Shaft Inertia Moment | ≤ 15.10⁻⁶ kg.m² |
| Torque | ≤ 10.10⁻³ kg.m² |
| Permissible max. Speed | 9,000 min⁻¹ |
| Continuous max. Speed | 6,000 min⁻¹ |
| Shaft seal | Viton double lips |
| Shock (EN60068-2-27) | ≤ 2,000 m.s⁻² (during 6ms) |
| Vibrations (EN60068-2-6) | ≤ 200 m.s⁻² (10 … 1,000 Hz) |
| EMC | EN 50081-1, EN 61000-6-2 |
| Isolation | 1,000 V eff |
Weight & Environmental
| Weight (connector or cable version) | 1.3 kg — alu cover, alu body
2.6 kg — alu cover, stainless steel body 2.8 kg — stainless steel cover and body |
|
| Weight (terminal box version) | 1.3 kg — alu cover, alu body
2.6 kg — alu cover, stainless steel body 2.8 kg — stainless steel cover and body |
|
| Operating Temperature | -20 … +80 °C (Encoder T°) | |
| Storage Temperature | -40 … +80 °C | |
| Protection (EN 60529) | IP 65 | |
| Theoretical Mechanical Lifetime: 10⁹ turns (Faxial / Fradial) | ||
| 20 N / 30 N: 360 × 10⁶ turns | 50 N / 100 N: 30 × 10⁶ turns | 100 N / 200 N: 2.5 × 10⁶ turns |

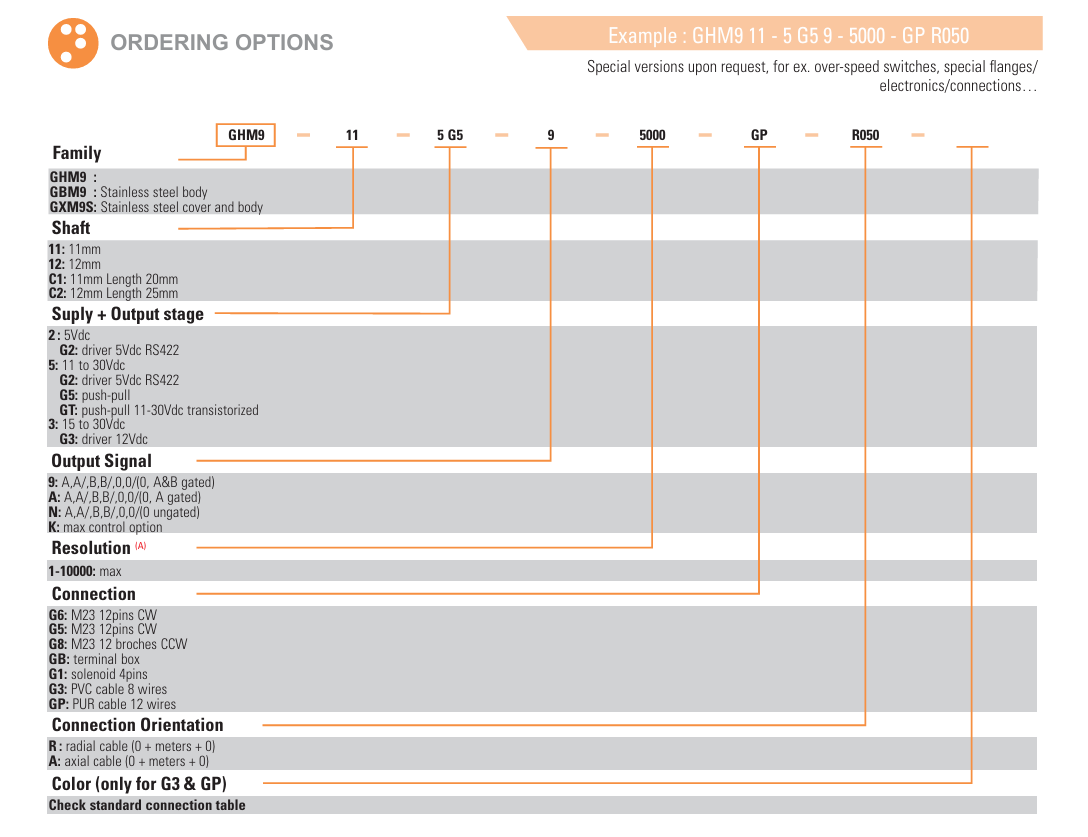

Order Options
Find More Drawings & Technical Specifications … Click Here
