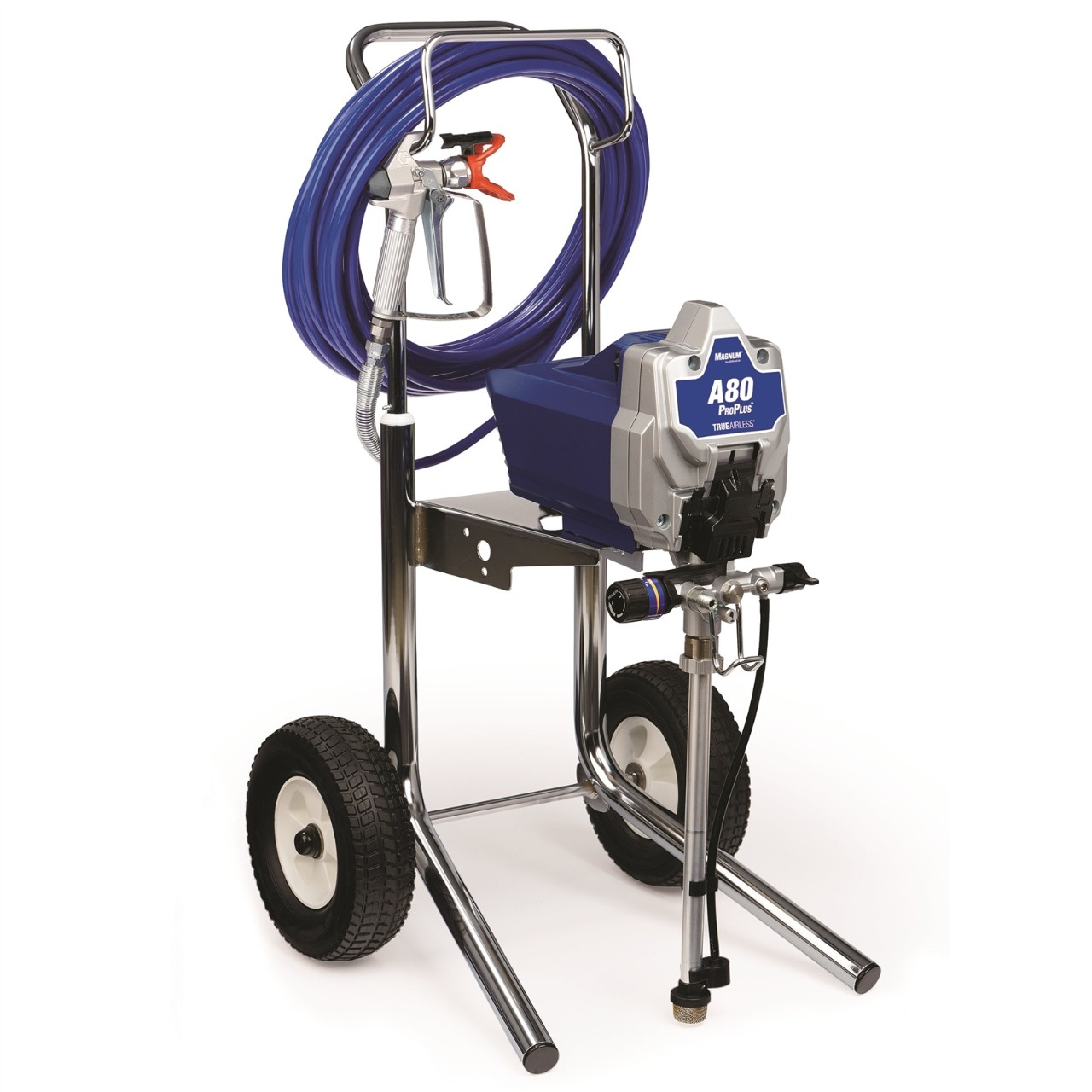

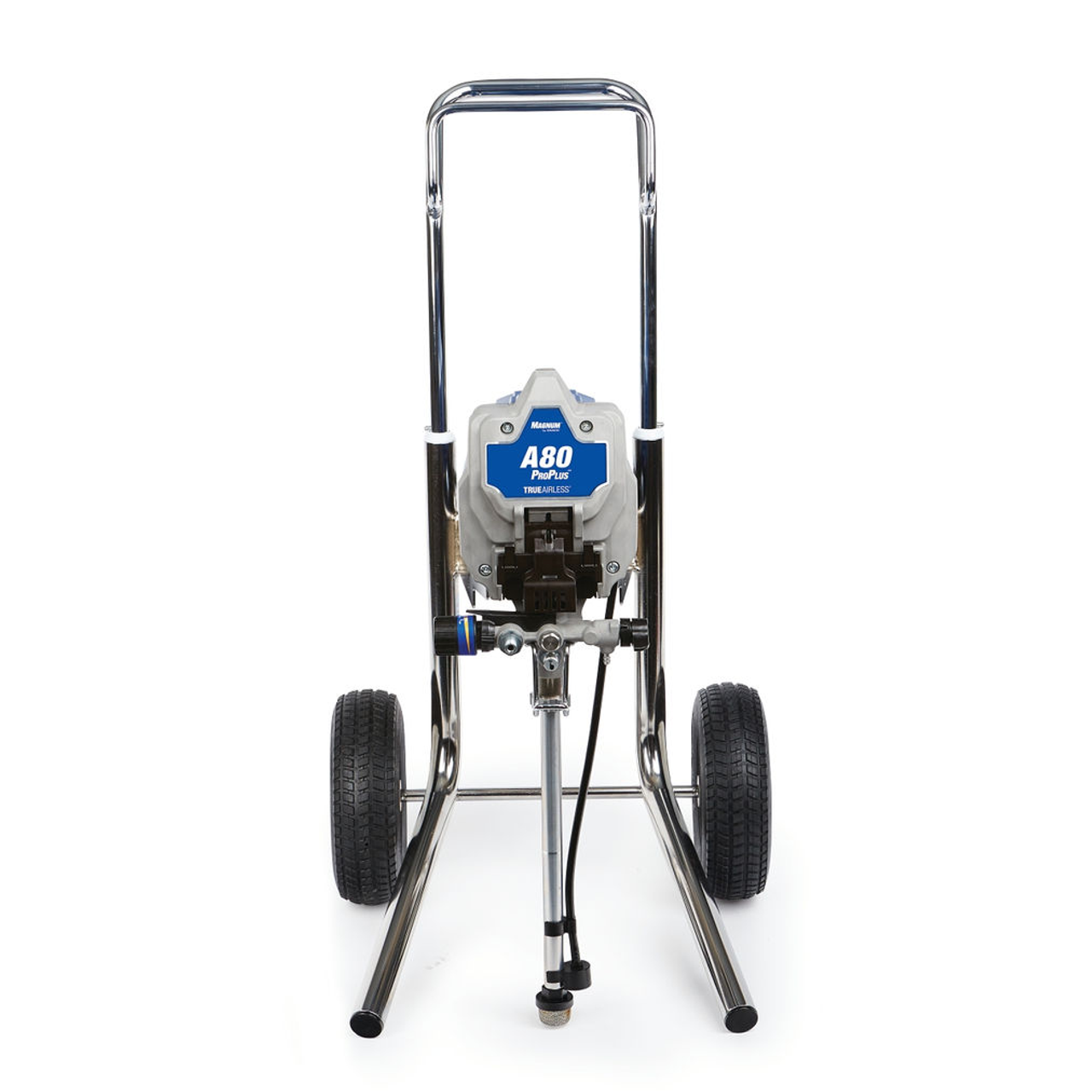

Graco Magnum A80 ProPlus Electric Airless Sprayer



The Magnum A80 ProPlus is designed to handle a wide variety of large-sized interior and exterior paint jobs as well as commercial job sites. Turn projects around smarter and faster with the Magnum A80 ProPlus with built-in cart. This workhorse helps you save time and money by allowing you to spray t…

MFG Part Number 17H215
Stock Limited



Features

The Magnum A80 ProPlus is a high-performance airless paint sprayer, ideal for handling large-scale interior and exterior jobs as well as commercial applications. Here’s an overview of its key features:

  • ProX Stainless Steel Piston Pump: Offers increased reliability and a longer lifespan, ensuring consistent performance.
  • ProXChange Pump System: Enables quick and easy pump replacements without needing tools, minimizing downtime during projects.
  • Longer Pump Stroke: Supports a 0.5 cm (0.021 in.) tip, allowing for the spraying of thicker materials, making it ideal for heavy-duty coatings.
  • DC Motor: Provides longer motor life and supports up to 60 meters of airless hose, ensuring flexibility in large work areas.
  • Hot Solvent Compatible: Can handle hot solvents, including solvent-based lacquers, for a wider range of project needs.
  • PushPrime: Ensures fast and reliable start-up, making the initial setup quick and hassle-free.
  • SG3 Metal Spray Gun: Features a premium spray gun design with a hose swivel, enhancing maneuverability when using longer hoses.
  • TrueAirless Spray Tip with SoftSpray Technology: Improves control, reduces overspray, and works with a variety of coatings for a professional finish.
  • Durable Welded Frame: Designed for easy transport, it’s tough enough to handle tough job sites.
  • Adjustable Pressure: Allows for precise control of paint flow, accommodating various project needs and paint types.

With its durability, ease of use, and versatility, the Magnum A80 ProPlus is a top choice for professionals looking to enhance their productivity and quality on commercial job sites.

Compatible Material Wood stains, Opaque wood stains, Varnishes, Lacquers, Wood paints, General undercoats, Façade paints, Antifouling, Thick façade paints, Particularly thick paints, Non-paints
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Convertible Non-Convertible
Engine Size (kW) 0.65
Filter Mesh Size 60
Fluid Hose Inside Diameter (in) 1/4
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Size (mm) 31.75
Fluid Inlet Thread Type NPSM
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6,35
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Frequency (Hz) 50
Hose Diameter (in) 1/4
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Includes SG3 spray gun, TrueAirless 515 spray tip, RAC5 spray tip guard, 1/4 in x 15 m DuraFlex hose, Pump Armor storage fluid (235 ml), garden hose connector, quick start-up guide and operating manual
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 1.8
Maximum Fluid Working Pressure (psi) 3000
Maximum Hose Length (m) 60
Maximum Operating Temperature (°C) 46
Maximum Sound Pressure Level (dB(A)) 93
Maximum Tip Size (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (kg/cm²) 20.7
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Minimum Operating Temperature (°C) 4
Minimum generator power (kW) 0
Model Magnum
Motor Type DC
Mount Type ProXchange
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (cm) 97.8
Overall Height (mm) 977.9000
Overall Length (cm) 52.8
Overall Length (mm) 528.32
Overall Width (cm) 52.3
Overall Width (mm) 523.2400
Phase 1
Power Cord Length (cm) 180
Power Cord Length (mm) 1801.3680
Power Rating (W) 653
Power Rating (kW) 0.65
Power Source Electric
Pressure Control Type Adjustable
Product series Pro series
Pump Mount Type ProXchange
Pump Rod Type Hardened stainless steel
Pump Sleeve Material Stainless Steel
Pump Type ProX Piston Pump
Recommended Annual Usage 3000 L
Region plug type EU region (type C, E & F plug)
Series A80 ProPlus
Spray Gun Type SG3 – spray gun
Spray Type Airless
Type Airless Sprayer
Voltage (V) 230
Weight (kg) 22.5
Wetted Material Stainless Steel, Brass, Leather, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, Plated Steel, UHMWPE, Aluminium
