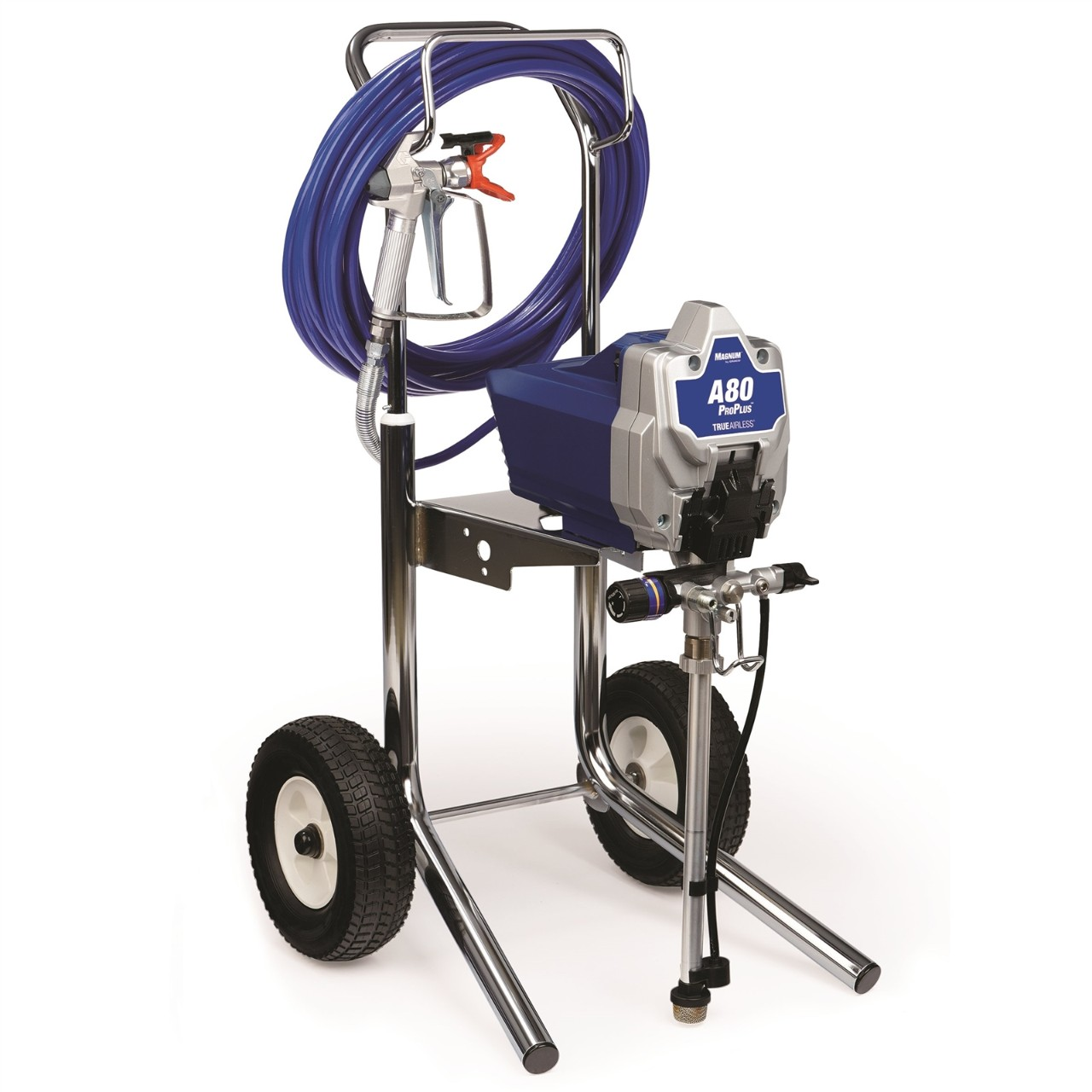

Graco Magnum A80 ProPlus Electric Airless Sprayer, Switzerland

Graco Magnum A80 ProPlus Electric Airless Sprayer, Switzerland

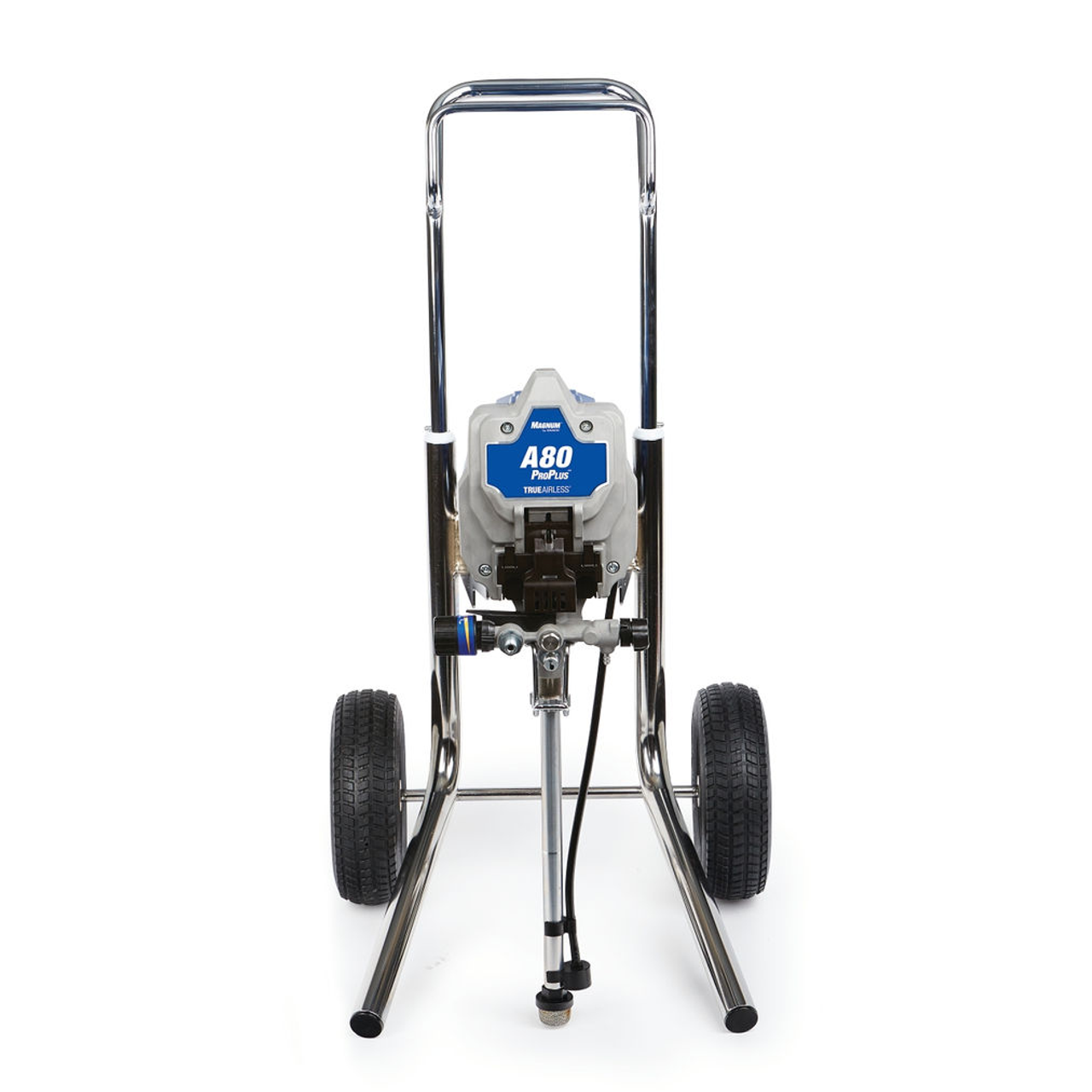

Graco Magnum A80 ProPlus Electric Airless Sprayer, Switzerland - Image 2



The Magnum A80 ProPlus is designed to handle a wide variety of large-sized interior and exterior paint jobs as well as commercial job sites. Turn projects around smarter and faster with the Magnum A80 ProPlus with built-in cart. This workhorse helps you save time and money by allowing you to spray t…

MFG Part Number 25C763
Stock Limited
SKU GRACO-25C763 Categories , , Tag



Features

The Magnum A80 ProPlus is a high-performance airless paint sprayer designed for large-scale interior and exterior projects, particularly for commercial job sites. Key features include:

  • ProX Stainless Steel Piston Pump: Provides greater reliability and longer lifespan.
  • ProXChange Pump System: Allows for fast, no-tools pump replacement to minimize downtime.
  • Longer Pump Stroke: Accommodates a 0.5 cm (0.021 in.) tip, enabling the spraying of thicker materials.
  • DC Motor: Ensures extended durability and can support up to 60 meters of airless hose.
  • Hot Solvent Compatibility: Suitable for use with hot solvents, like solvent-based lacquer.
  • PushPrime: Facilitates quick and reliable start-ups.
  • SG3 Metal Spray Gun: A premium gun with a hose swivel, making it easier to manage longer hoses.
  • TrueAirless Spray Tip with SoftSpray Technology: Provides greater control and reduces overspray, while handling a wide range of coatings.
  • Durable Welded Frame: Ensures easy transportation across job sites.
  • Adjustable Pressure: Offers precise control of the paint flow for different applications.

This sprayer is designed to boost efficiency, minimize downtime, and handle heavy-duty jobs with ease.

4o mini
Compatible Material Wood stains, Opaque wood stains, Varnishes, Lacquers, Wood paints, General undercoats, Façade paints, Antifouling, Thick façade paints, Particularly thick paints, Non-paints
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Fluid Hose Inside Diameter (in) 1/4
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Size (mm) 31.75
Fluid Inlet Thread Type NPSM
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6,35
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Frequency (Hz) 50
Hose Diameter (in) 1/4
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Includes SG3 spray gun, TrueAirless 515 spray tip, RAC5 spray tip guard, 1/4 in x 15 m DuraFlex hose, Pump Armor storage fluid (235 ml), garden hose connector, quick start-up guide and operating manual
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 1.8
Maximum Fluid Working Pressure (psi) 3000
Maximum Hose Length (m) 60
Maximum Operating Temperature (°C) 46
Maximum Tip Size (in) 0.021
Maximum Working Pressure (bar) 207
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Minimum Operating Temperature (°C) 4
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (cm) 50.0
Overall Length (cm) 66
Overall Width (cm) 37.5
Power Cord Length (cm) 180
Power Source Electric
Pressure Control Type Adjustable
Product series Pro series
Pump Mount Type ProXchange
Pump Rod Type Hardened stainless steel
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 3000 L
Region plug type CH region (type J plug)
Series ProS21 ProPlus
Spray Gun Type SG3 – spray gun
Spray Type Airless
Type Airless Sprayer
Voltage (V) 230
Weight (kg) 12.5
Wetted Material Stainless Steel, Brass, Leather, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, Plated Steel, UHMWPE, Aluminium
