Features

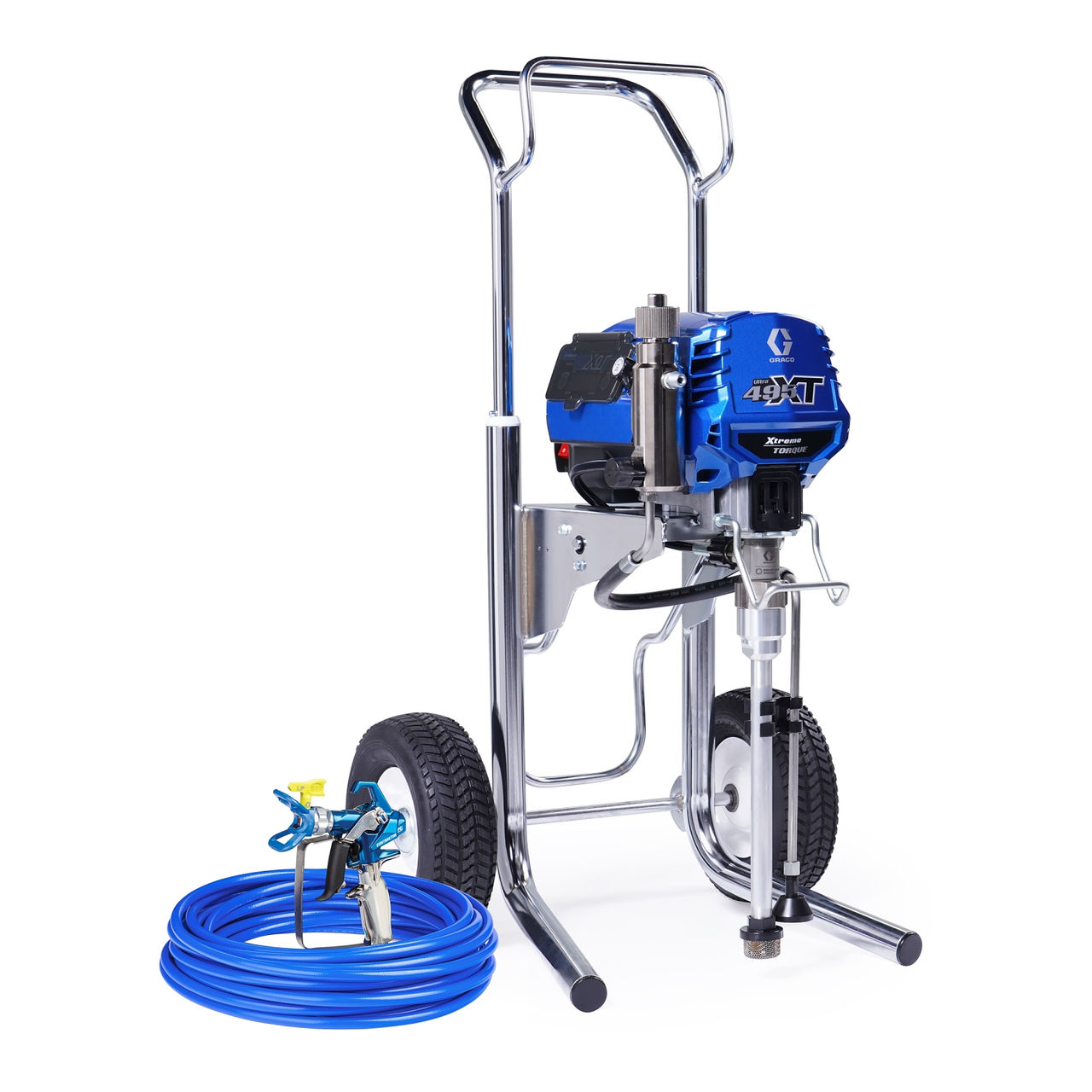

The Ultra 495 XT delivers an airless spray experience like no other. Featuring a 1.7 HP Xtreme Torque motor, next generation rapid-response pressure control, elevated performance, and the longest life pump in its class, the Ultra 495 XT is sure to become a staple in your fleet.

Xtreme Productivity. Xtreme Reliability. Graco’s Xtreme Torque midsized electric sprayers make it easier to get more work done in a day with increased flow and production rates.

• Xtreme Torque motor technology
  • 15 times more torque than traditional motors
  • 8 times more magnets provide unmatched power and performance
  • 90% lower running speeds extend the motor’s life
  • Up to 10 times quieter
• Rapid-response pressure control
  • Instantly responds to deliver the best finish quality
  • More performance across its full tip size range
  • Industry’s largest operating pressure range (3-227 bar)
• Selectable performance modes
  • Two selectable spray modes offer unique performance levels to boost efficiency on every job
  • Bring on the savings and achieve Xtreme control with low pressure mode (3-140 bar)
  • Use high pressure mode for Xtreme performance (35-227 bar)
• Easy-to-read LED digital display
  • Visible in even the toughest spraying conditions
• Endurance Vortex piston pump with ProConnect
  • Endurance Vortex rod lasts 3 times longer than its closest competitor
  • ProConnect pump removal for fast on-the-job service
• TurboClean cleaning system
  • The industry’s fastest pump cleaning system
  • Delivers 3 times faster cleaning with half the water
  • Convenient location
• WatchDog pump protection
  • Prevents damage by shutting off the pump when it’s time to refill
• Durable filtration
  • Easy out filter provides easy maintenance and less clogging
• Easy transport
  • Stand weighs just 15.4 kg (31 lb)
• Gun, hose and tip included
  • Contractor PC Gun & RAC X LP 517 SwitchTip

Downloads

• Installation Guide
