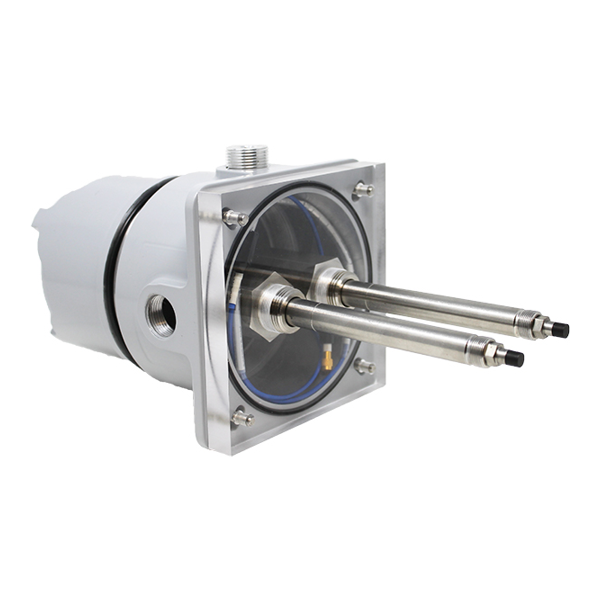

Metrix 5497DTPH Dual Thrust Probe Holder

The Metrix 5497DTPH-CCC-D Dual Thrust Probe Holder is designed for use in Class I Div 1 hazardous locations and features dual probe holders (model 5497PM-1-0-CCC-D-0) for axial adjustment. Here’s a quick breakdown of the key specifications and ordering options:

Key Features:

1. Dual Probe Holder: Includes two 5497PM Probe Holders within the main housing.
2. Mounting Compatibility:
   • Probe holders mount directly to the machine via G3/4” or 3/4NPT threads spaced 50mm (2.0”) on center.
   • Housing slots accommodate mounting hole patterns between 108mm (4.25”) to 114mm (4.5”) on center, with 10mm (3/8”) square bolts.
3. Adjustability:
   • Up to 50mm (2.0”) of axial adjustment within the housing.
4. Installation Lengths:
   • Standard lengths: 90mm (3.5”), 140mm (5.5”), 190mm (7.5”), and 240mm (9.5”), with 50mm (2.0”) of negative adjustment.
   • Custom lengths available upon request.
5. Reverse Probe Mount Thread Size Options:
   • Available in 3/8”x24 and M10x1 threads.

Ordering Instructions:

To order, specify the desired installation length and reverse probe mount thread size. For lengths outside the standard options, contact the factory for customization.
