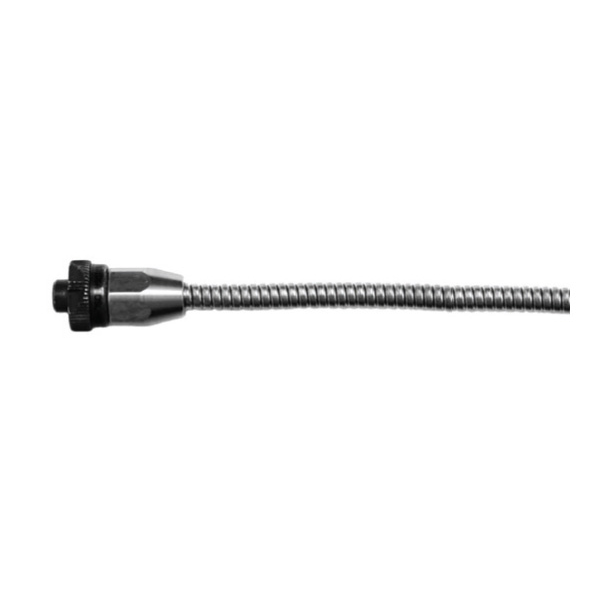

Metrix 9334-211-AAAA-BBBB Standard Cable Assembly w/ Stainless Steel Armor

Metrix 9334-211-AAAA-BBBB Standard Cable Assembly w/ Stainless Steel Armor

Standard cable assembly with stainless steel armor; uses 2-Pin Mil-style MS3106 female threaded connector. Cable armor covers 0.25” diameter polyurethane jacketed cable with twisted, shielded pair wires. Connector pre-installed on one end, flying leads on other end. Rated to 121°C (250°F) max.

MFG Part Number [[[ MFG PART NUMBER ]]]
Stock Limited
SKU METRIX-9334-211-AAAA-BBBB Categories , , Tag

Model: 9334-211-AAAA-BBBB

This specification describes a cable assembly with the following key features:

  1. Cable Type:
    • Polyurethane jacketed, twisted, shielded pair wires.
    • Armored with stainless steel covering.
    • Rated to operate up to 121°C (250°F).
  2. Connector:
    • 2-pin Mil-style MS3106 female threaded connector pre-installed on one end.
    • Other end has flying leads (un-terminated wire ends).
  3. Dimensions:
    • Armor Length (AAA.A):
      • Minimum length: 0.5 meters (0005)
      • Maximum length: 59.5 meters (0595)
      • Defined in 0.5-meter increments.
    • Cable Length (BBB.B):
      • Minimum length: 1.0 meter (0010)
      • Maximum length: 60.0 meters (0600)
      • Defined in 0.5-meter increments.
      • Cable length must be at least 0.5 meters longer than the armor length.
