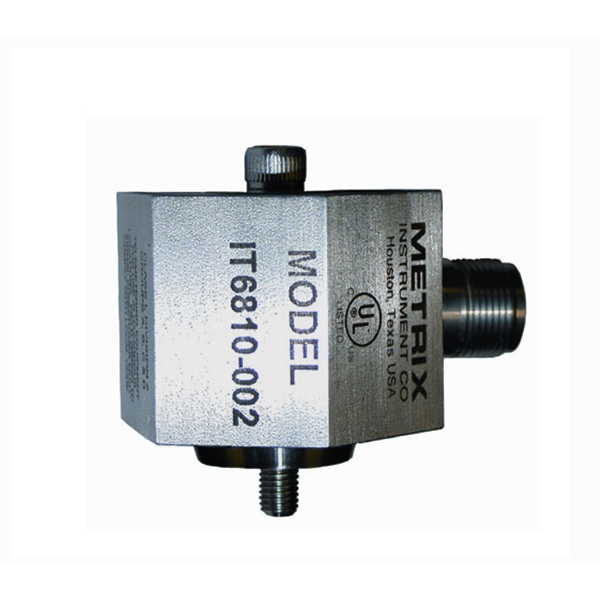

Metrix IT6810 Impact Transmitters

Model: IT6810

The Impact Transmitter with an integral signal conditioner is designed for monitoring mechanical looseness in industrial equipment. This device is a 4-20 mA loop-powered sensor, meaning it can be easily integrated into existing control systems using minimal wiring, which makes it cost-effective and convenient. Key features include:

1. Piezoelectric Crystal Sensing Element: The built-in piezoelectric crystal sensor provides high sensitivity to mechanical impacts, making it effective in identifying even slight mechanical looseness.
2. Timing Function for Severity Determination: The transmitter uses a timing function to assess the severity of impact events, allowing it to differentiate between minor and critical impacts based on preset thresholds.
3. Impact Event Counter and Memory: It includes an event counter and memory to record each impact that meets or exceeds a specific amplitude threshold. This historical data can be used to track trends and assess the health of machinery over time.
4. MIL-C-5015 Style Connector: The use of a 2-pin MIL-C-5015 style connector ensures reliable connections in industrial environments.
5. Compact and Lightweight: With an approximate weight of 0.3 kg (0.66 lbs), this device is compact and easy to install, even in confined spaces.

This impact transmitter is ideal for monitoring rotating equipment, reciprocating machinery, and other industrial applications where mechanical looseness can lead to equipment failure.

Accessories

• Splashproof Cable Assembly: 8978-111-XXXX

• Connector Assembly with Stainless Steel Armor: 9334-211-XXXX-YYYY

• Connector Assembly: 8978-211-XXXX

• Explosion proof housing for IT6812: 9288-001 / 9288-002 / 9288-003
• Impact Transmitter Calibrator: 6850-001
