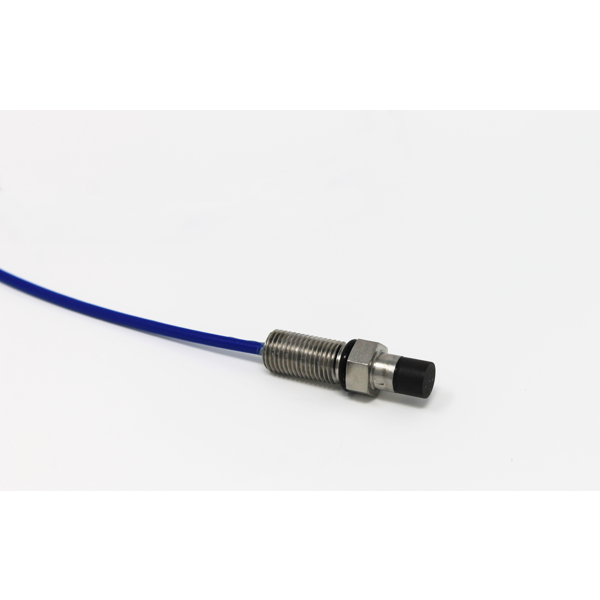

Metrix MX2030 Probe Series
The Metrix MX2030 probe is designed for full API 670-compliant performance specifications when used with a properly matching MX2031 extension cable and MX2033 driver. The MX2030 probes are completely interchangeable with the Bently Nevada 3300 and 3300 XL 5 mm/8 mm probes. These distance probes/transducers meet API 670 specifications and have North American ATEX, IECEX, and other hazardous area approvals.
| MFG Part Number | Metrix MX2030 series |
| Stock | Limited |
Technical Information
The Metrix MX2030 probe offers a full 80 mil (2 mm) range, available in 5 mm and 8 mm. It is designed for full API 670-compliant performance when used with a properly matched MX2031 extension cable and MX2033 driver. The MX2030 probes are completely interchangeable with the Bently Nevada 3300 and 3300 XL 5 mm/8 mm probes. These distance probes/transducers meet API 670 specifications and have North American ATEX, IECEX, and other hazardous area approvals.
Distance probes measure the relative motion of the rotor or piston rod relative to the machine frame. The probes measure the motion of the machine rotor or alternating compressor piston rod using eddy currents generated in the metallic surface by the proximity probe system. The sensitivity of the digital proximity system is ideal for measuring small movements of the rotor or piston rod. Proximity probes do not touch the metal object they are monitoring, making them a great choice for monitoring liquid film-bearing machines and alternative compressor piston rods.
Features
The MX2030 Proximity Series features the following:
- Probe tip: Polyphenylene Sulfide
- Probe case: 304 Stainless Steel (316 SS is an available option)
- Available in small probe bodies ¼ x 28 UNF and M8 x 1
- Probe/Extension cable: 75Ω coaxial, Tefzel® 750 insulation
- Probe/Extension cable temperature range: -51°C – 177°C (-60°F – 350°F)
- Driver/Transmitter temperature range: -40°C – 85°C (-40°F – 185°F)
- Relative Humidity: 95%, non-condensing
- Weight: 298g (10.5 oz)
The MX2030 series has been tested by an independent third party for safety standards based on IEC61508 Functional Safety regulations. After a rigorous study to determine the reliability of our systems, these products have achieved Safety Integrity Level certification. The Metrix distance sensors are designed with the utmost attention to detail. Technicians and operators who use Metrix versatile and functional probes are more likely to work with accurate data, giving them enough time to intervene before the situation becomes unmanageable.
