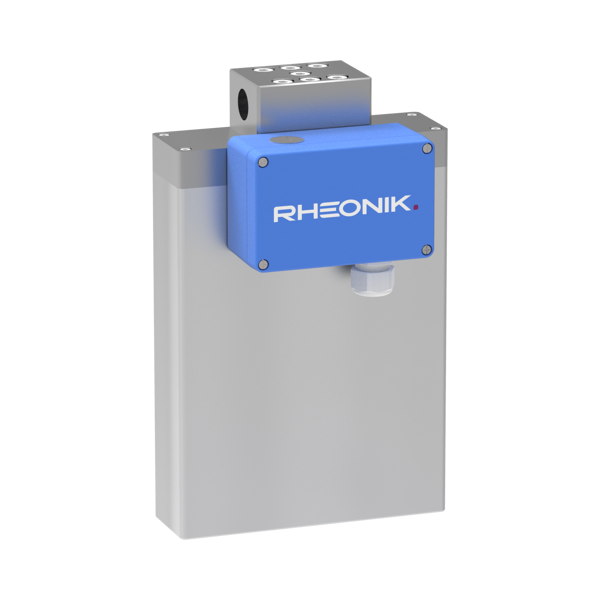

Rheonik RHM 10 Flow Sensor
The Model RHM 10 is perfect for small scale production with continuous low flow and small batch dispensing requirements. With a variety of construction styles, the RHM 10 is ideal for countless flow applications.
- Range: 0.25 kg/min up to 90 kg/min
- Pressure: up to 1384 bar (20073 psi)
- Temperature: -196°C (-321°F) up to +350°C (662°F)
- Accuracy: 0.1 % of rate
- Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Sandvik HP160, Alloy C22 – 2.4602
- Process Connection: ½” up to 1 ½”
| MFG Part Number | RHM-10 |
| Stock | Limited |
General Specifications
| Nominal Flow (Qnom)* | 60 kg/min (132 lb/min) |
| Maximum Flow (Qmax)* | 90 kg/min (198 lb/min) |
| Typical Minimum Flow (Qmin)* | 0.25 kg/min (0.55 lb/min) |
| Serial Tube / Single Path | Flow rates Qmax, Qnom and Qmin for “serial” sensors will be 50% of the above listed parallel/dual path version. |
| Operating Temperature |
Fluid temperature range options cover from -196°C to +210°C (-320°F to +410°F) |
| Ambient Temperature | -50°C to +80°C (-60°F to +180°F). High temperature version for oven installation up to +210°C (+410°F) available |
| Pressure Ratings | Up to 1379 bar / 20000 psi – dependent upon material |
| Electrical Connection Sensor w/o Integral Transmitter |
M20 x 1.5 standard cable entry for JM, SM terminal box versions |
| Sensor Enclosure Materials |
Stainless steel 304 (standard), SS 316 (optional) |
| Enclosure Type | Protection class IP 66, NEMA 4 (standard), IP 66/67, NEMA 4X (optional) |
| Wetted Materials |
Flow tubes SS 316L, SuperDuplex or Sandvik HP160© |
| Process Connections | Nearly any – the Rheonik AnyPipeFit Commitment. Consult factory for types/sizes not listed in this data sheet on the Mechanical Construction pages |
| Pressure Rating Compliance | PED 2014/68/EU Article 4, Section 3 (SEP) |
| Certifications and Approvals |
ATEX / IECEx Approvals Zone 0, 1, 2 (see page 19) |
| Testing and Inspection | All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services are available |
| Project Documentation and QA, Services |
Rheonik offers a full set of services for large and complex engineering projects.
|
| Options | Customization services for machine integration. Consult factory |
* At Qnom pressure drop across a parallel tube sensor will be approximately 2.2 bar (32 psi) for H2O. Sensors can be operated at higher flow rates up to Qmax but pressure drop will be higher. Typical Minimum Flow Qmin is the recommended lowest flow rate for an accurate measurement. Sensors will measure flow rates lower than Qmin but uncertainty will increase beyond 1 % of rate.
The flow rate specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.
Pressure Drop
At Qnom, pressure drop across a parallel tube sensor will be approximately 1-3 bar (15-44 psi) for H2O. Sensors can be operated at higher flow rates but pressure drop will be higher. Qmin is the recommended lowest flow rate. Sensors will measure flow rates lower than Qmin, but uncertainty will increase beyond 0.5 % of rate.
The flow specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.
