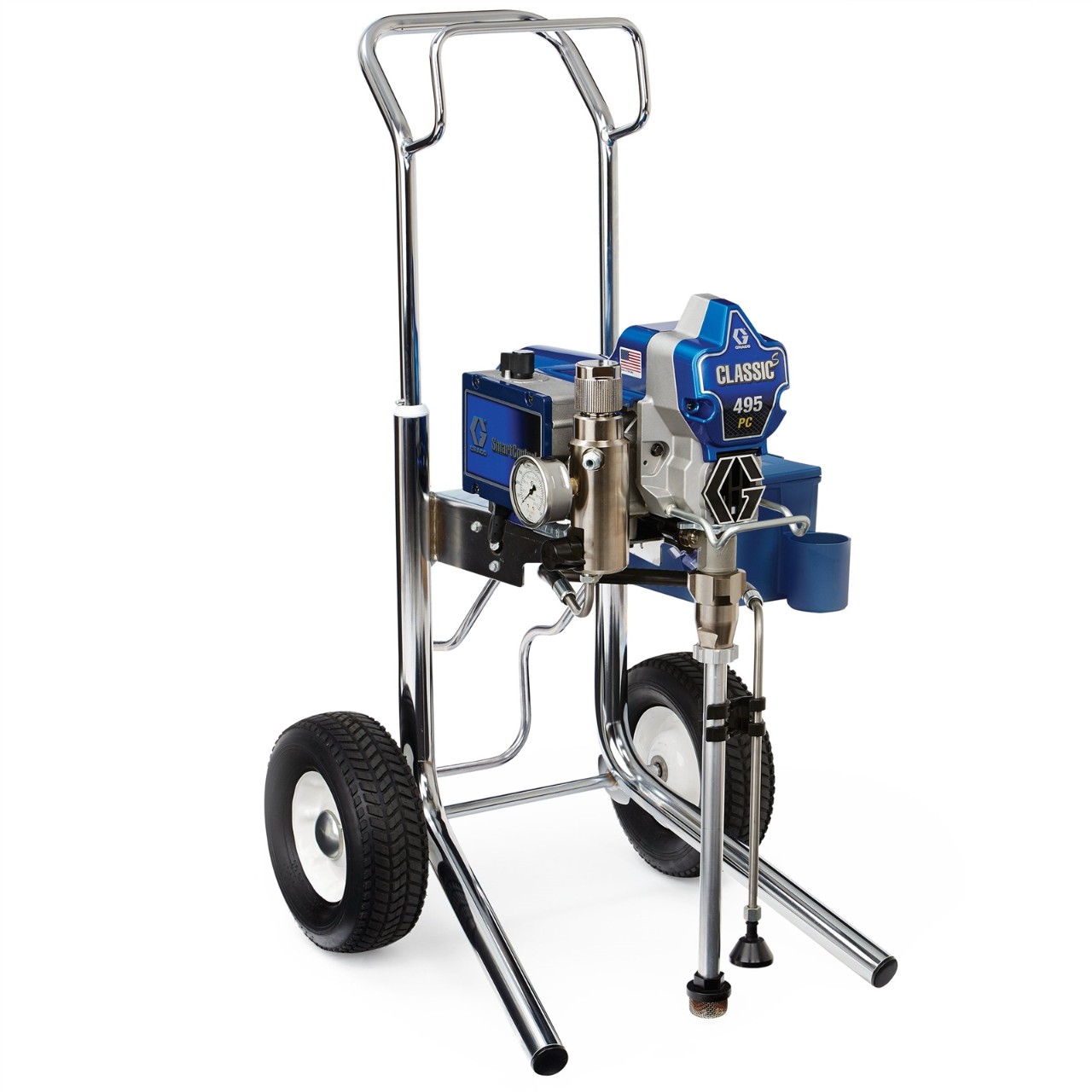

Graco Classic S 495 PC Electric Airless Sprayer, Hi-Boy, 230V, CE
The performance and versatility of the Classic S 495 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
| MFG Part Number | 17E025 |
| Stock | Limited |
Features
The performance and versatility of the Classic S 495 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
The CLASSIC S 495 PC is the best choice for professionals looking for superior performance, control and extra comfort for daily use on residential jobs.
-
Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
-
Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
-
ProConnect One-Part Pump Replacement System
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
-
Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
-
Rugged Steel Frame
- Thick chrome over steel withstands rugged environments
- Heavy-duty handles and semi-pneumatic wheels roll easily over rough terrain
-
Variable Pressure Control
- Position indicator allows repeatable setting
-
Durable Cart Design
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
-
Proguard
- Sprayer Protection System
- Guards against bad or extreme job site power conditions
- 230V models only
- Optional
-
Hopper
- A convenient 5.7 litre hopper, compatible with all Classic & STMAX units
- Avoid pollution of material, extending pump life
- Delivering increased pump efficiency by material gravity
- Optional
-
All Units Ship Complete And Ready To Spray
- FTX-E 4-Finger Airless Spray Gun
- RAC X 517 Spray Tip and Guard
- 1/4 in. x 15 m BlueMax II Airless Hose
| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
| Compatible Replacement Pump | 17C489 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 0.75 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | FTX-E 4-Finger Gun, Filters (Gun + Manifold), BlueMax II Hose 1/4 in. x 15 m, RAC X Tip and Guard |
| Maximum Flow Rate (L/min) | 2.3 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 15 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.025 |
| Maximum Tip Size 1 Gun (in) | 0.025 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Classic S |
| Motor Type | TEFC DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 72 |
| Overall Height (mm) | 717.5500 |
| Overall Length (cm) | 59 |
| Overall Length (mm) | 590.55 |
| Overall Width (cm) | 52 |
| Overall Width (mm) | 520.7000 |
| Phase | 1 |
| Power Rating (kW) | 1.00 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Region plug type | EU region (type C, E & F plug) |
| Series | 495 PC |
| Spray Gun Type | FTX gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 581 |
| Weight (kg) | 30 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
