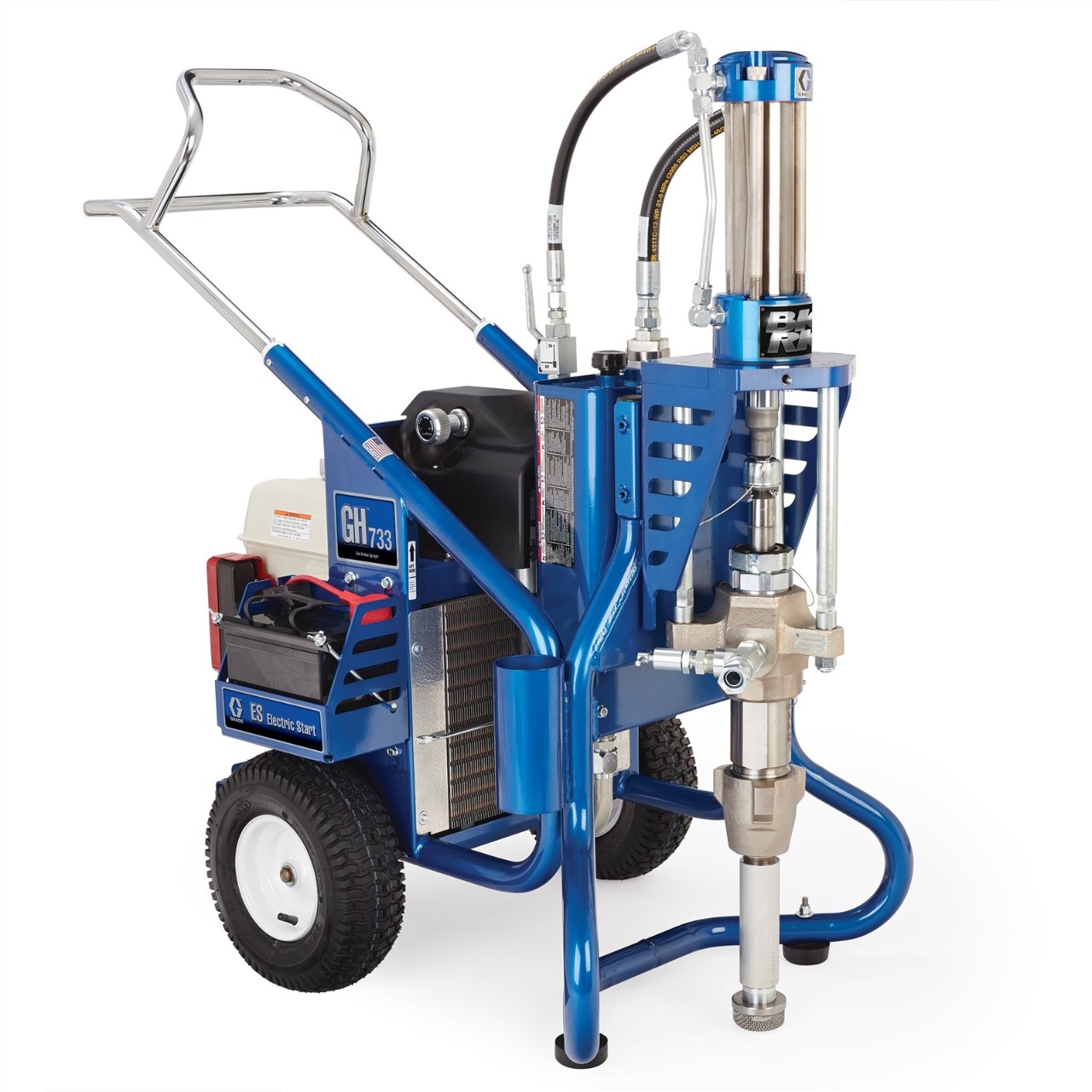

Graco GH 733ES Petrol Hydraulic Sprayer, Big 250 System
For 30 years, contractors have turned to the GH line of petrol hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomise materials, or high flow rates for heavier coverage, the GH 733 can get the job done.
| MFG Part Number | 16U778 |
| Stock | Limited |
Features
For 30 years, contractors have turned to the GH line of petrol hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomise materials, or high flow rates for heavier coverage, the GH 733 can get the job done.
-
Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
-
Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
-
Heavy-Duty Cooling System
- Large 15 litre (4 gallon) hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
-
Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tyres
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
-
Xtreme Pump
- QuikChange pump section
- Time-tested durability and performance
- Long-life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuickAccess intake valve removes easily for fast repairs
-
Ready-To-Spray Big 250 System
- Configured with 75 m (250 ft) of pressure-rated hose, gun, tip extensions, and all the fittings you will need
-
Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminium Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminium Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
| Compatible Replacement Pump | 16U753 |
| Control Type | N/A |
| Frame Configuration | Cart |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 519 Spray Tip, RAC X LTX 531 Spray Tip, 30 in. Tip Extension, 180° Tip Swivel, 1/2 in. x 75 m (250 ft) Xtreme-Duty Airless Hose, 3/8 in. x 3 m (10 ft) Xtreme-Duty Airless Whip Hose |
| Material Application | Paints, Primers |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Hose Length (m) | 76 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.065 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (kPa) | 27600 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 1 |
| Power Rating (W) | 9694 |
| Power Rating (cc) | 390 |
| Power Rating (kW) | 9.69 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Type | Xtreme |
| Series | 733ES |
| Type | Airless Sprayer |
