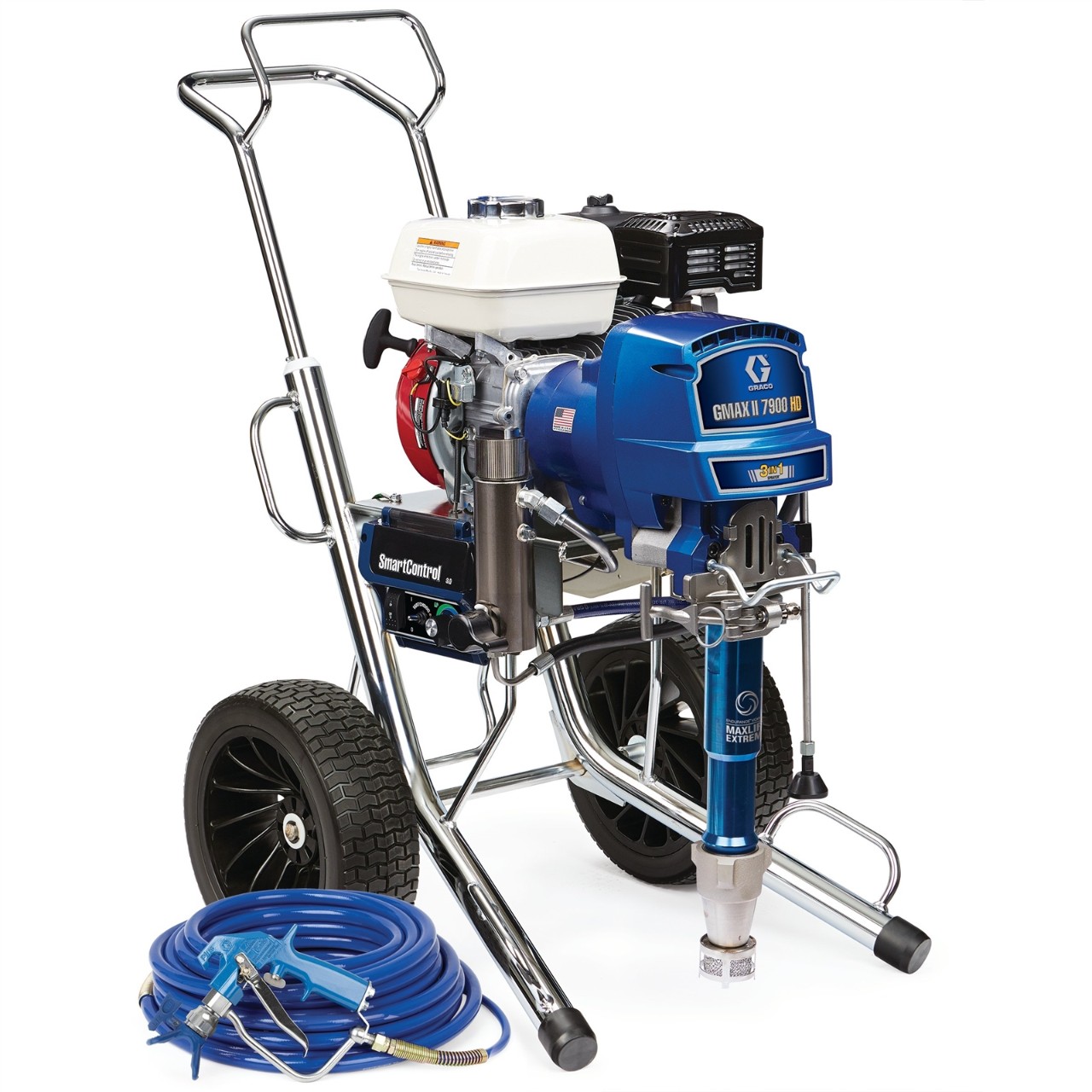

Graco GMAX II 7900 HD IronMan Series Petrol Airless Sprayer
The Graco GMAX II 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Q4 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings, thanks to dir…
| MFG Part Number | 17E843 |
| Stock | Limited |
Features
The Graco GMAX II 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Q4 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings, thanks to direct immersed suction.
Beyond Jobsite Tough. GMAX II HD IronMan Series airless texture sprayers provide superior power & durability to handle the most brutal and demanding conditions typically found on large commercial and industrial job sites.
-
Endurance Vortex MaxLife Extreme Piston Pump
- The longest durability & life
- Breakthrough Vortex Rotating Piston Technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod
- 3X pump rod life
- Maximum versatility no matter what you’re spraying
- Long Life ceramic and stainless steel balls included for maximum versatility
-
MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimised fluid passageways for the heaviest coatings
-
Flat Proof Tyres
- Never Have a Flat Tyre Again
- Tyres can’t be punctured by nails, screws, or any sharp debris
-
Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
-
SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
-
WatchDog Pump Protection System
- Automatically prevents pump damage if material supply is too low
-
Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
-
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- LED Display Easy-to-read display provides quick reference to show:◦Pressure read-outJob/lifetime/gallon counterSelf-diagnostics
-
Additional Features:
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Heavy Duty Blue Texture Gun
- Rugged, Durable Cart Design
| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent |
| Compatible Replacement Pump | 17H837 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 4.85 |
| Features | Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, Flat Proof Tyres, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (cm) | 0.9525 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Inlet Diameter (mm) | 9.525 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 289605 HD Blue Texture gun, PAA517 + LTX427 + LTX531 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (3/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m), 238049 TSL™ (118 ml). |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 8.33 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 60 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.048 |
| Maximum Tip Size 1 Gun (in) | 0.048 |
| Maximum Tip Size 2 Guns (in) | 0.035 |
| Maximum Tip Size 3 Guns (in) | 0.027 |
| Maximum Tip Size 4 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 22700 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX II HD |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 98.6 |
| Overall Height (mm) | 986 |
| Overall Length (cm) | 96.8 |
| Overall Length (mm) | 1026 |
| Overall Width (cm) | 62.0 |
| Overall Width (mm) | 620 |
| Power Rating (W) | 4847 |
| Power Rating (cc) | 200 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Series | 7900 |
| Spray Gun Type | HD blue texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (kg) | 80 |
| Wetted Material | Acetal, Aluminium, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
