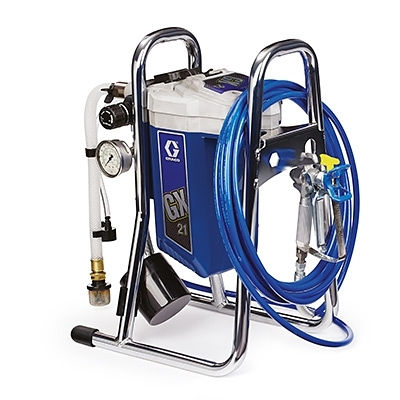

Graco GX 21 Electric Airless Sprayer, 230V, Multi
The GX 21 is an airless sprayer for professional residential repainting, new-build and small fine-finish jobs. This compact and lightweight unit can handle both water-based and solvent-based materials.
| MFG Part Number | 17H218 |
| Stock | Limited |
Features
The GX 21 is an airless sprayer for professional residential repainting, new-build and small fine-finish jobs. This compact and lightweight unit can handle both water-based and solvent-based materials.
-
Extremely Portable
- Lighter than any competitive system
- Easy Carry Handle makes transportation easy
- Lid prevents splashes and spills while carrying
-
Direct immersion design
- Draws paint directly from paint buckets
- Flexible, clear suction set is easy to use and clean
- Spray water-based or solvent-based paints directly from containers from 1 – 30 litres
-
ProX Power Piston Pump featuring ProXChange
- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long-life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement – no tools needed
- Eliminate labour costs and downtime expenses
-
Professional SG3 Gun
- Includes RAC X tip, 15 m hose
| Compatible Material | Primer, Stains, Water-Based Paint, Acrylics, Enamel, Latex |
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | DI stand |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | SG3 spray gun with four-finger trigger, RAC X SwitchTip, LP 517 and FFLP310 guard, 1/4 in x 15 m Duraflex hose, 60-mesh gun filter |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 15 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 1500 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum generator power (kW) | 1.5 |
| Model | GX |
| Motor Type | Electric |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 55.9 |
| Overall Height (mm) | 558.8000 |
| Overall Length (cm) | 46.7 |
| Overall Length (mm) | 467.36 |
| Overall Width (cm) | 30.5 |
| Overall Width (mm) | 304.8000 |
| Phase | 1 |
| Power Source | Electric |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Region plug type | IT, DK, CH region (type L, K & J plug) |
| Series | 21 |
| Spray Gun Type | SG3 – spray gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (kg) | 13 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
